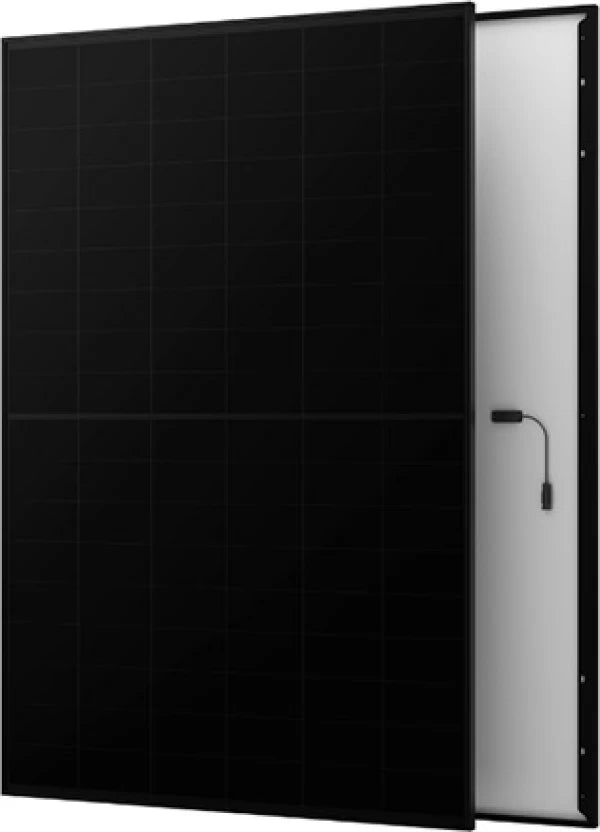

JA Solar JAM72D40-575L/GB Solar Panel

Maximize your solar investment with the JA Solar 575W BiFacial Panel, part of the advanced Deep Blue 4.0 Pro Series. Built with n-type bifacial mono cells and SMBB half-cell technology, this module delivers superior energy yield, durability, and long-term performance. Key Specifications: Rated Power Output: 575W Module Efficiency: 21.7% Bifacial Gain: Up to 80% ±10% rear-side boost Power Tolerance: 0 ~ +5W Temperature Coefficient (Pmax): -0.30%/°C Performance Advantages: Enhanced low-light and high-temperature performance Lower Light-Induced Degradation (LID) Better temperature coefficient for stable output Optimized for lower Levelized Cost of Energy (LCOE) Warranty & Certifications: 12-Year Product Warranty 30-Year Linear Power Output Warranty 1% degradation in year 1 Only 0.4% annual degradation thereafter Certified to IEC 61215 & IEC 61730 ISO 9001, ISO 14001, ISO 45001 certified Technical Details: Cell Type: Mono 16BB, 144 cells (6×24) Dimensions: 2333 × 1134 × 30 mm Weight: 32.5 kg Glass: 2.0 mm front & back tempered glass Connector: QC Solar QC 4.10-351 / Staubli MC4-EVO2 Max System Voltage: 1500V DC Operating Temperature: -40°C to +85°C Fire Safety Class: Class C
